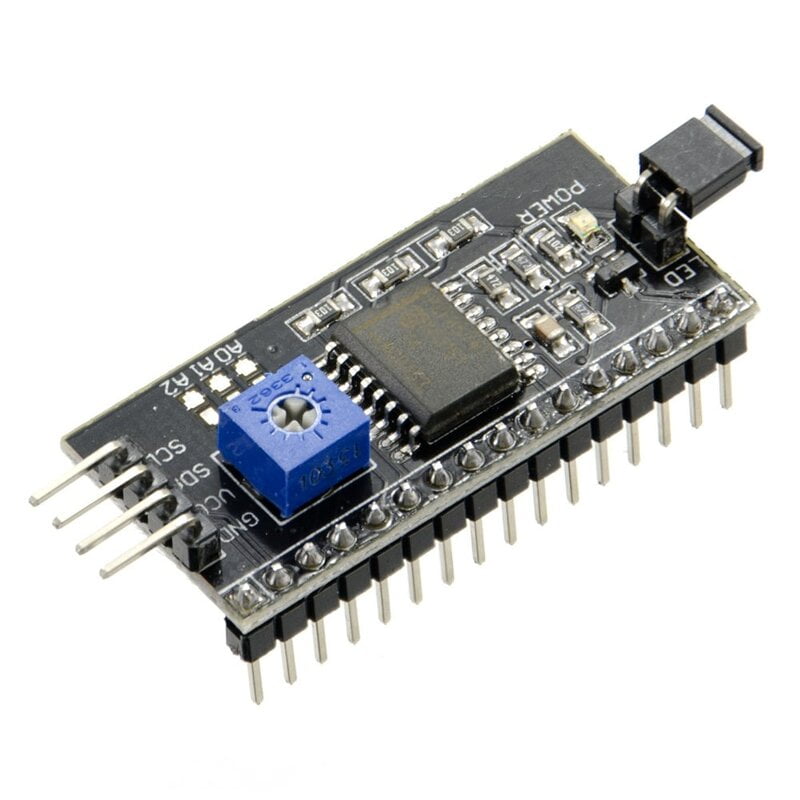

I2C Module
₹114.00
Tags:
- The I2C module makes connection and programming a display easy. It translates the data received from the I2C Bus into parallel data that is required for the LCD Display. The I2C interface module will let you realize data display with only 2 wires.
- Flexibility in connections | Reduces overall wirings | Can have 8 modules on a single I2C bus | Backlight can be enabled or disabled
- LxWxH : 80 x 36 x 15 mm
- This module makes connection and programming a display quick and easy. The Inter-integrated Circuit (I2C/IIC) is a two-wire short distance communication protocol. It can be used with multiple slave devices in the same two wires with one or more master controllers.
- Operating Voltage : 5V Chip : PCF8574 I2C chip Compatibility : 16x2 LCD Wires required : 2
